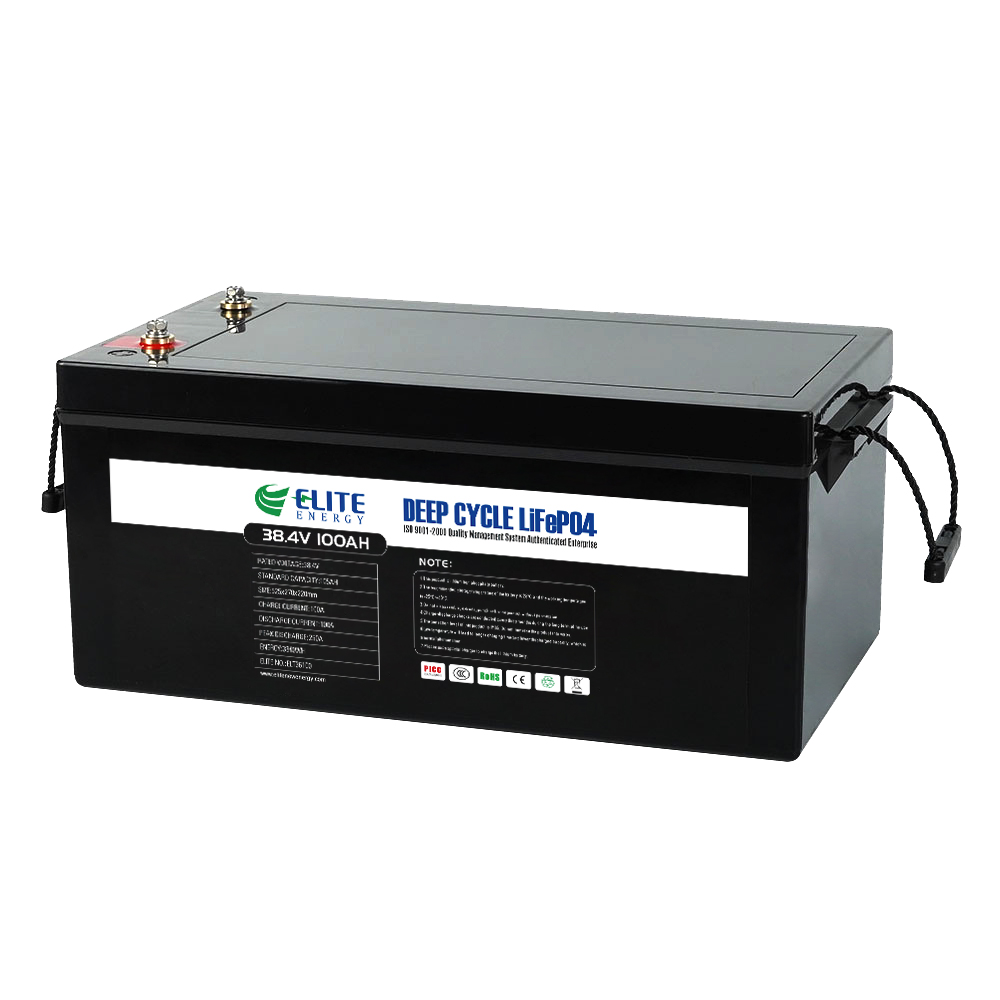

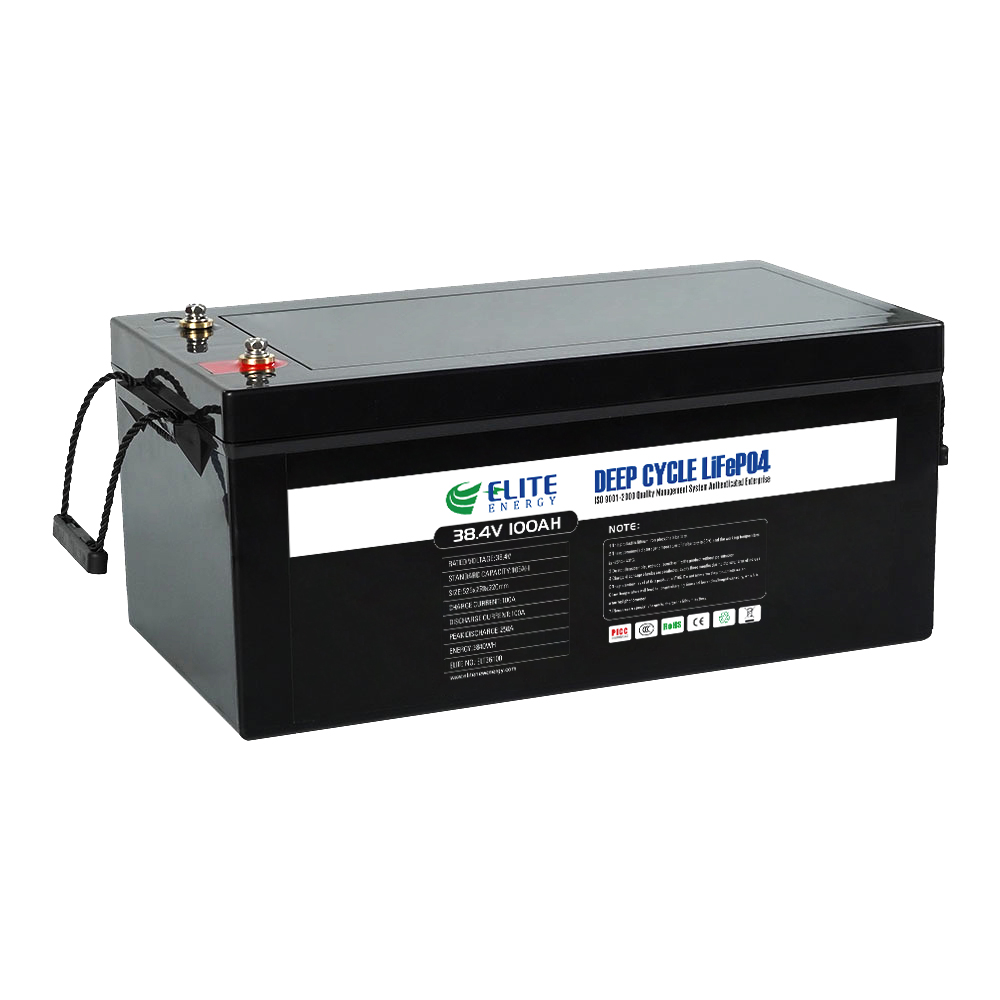

Products Description
1. Safety Performance: safest Lithium Iron Phosphate battery, CE IEC UN38.3 approved, built-in BMS
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
6. Low self-discharge rate: < 3% per month
7. BCI Group 31 Compliant,Drop-in Replacement for Lead Acid Battery
8.Special for RVs,Camper, Marine,Boat,Trolling Motor,Fishing Boat,Solar and Wind Power,Off-Grid Applications
Technical parameter
| No. | Item | General Parameter | |
| 1 | Nominal Voltage | 38.4V | |
| 2 | Rated Capacity | 100Ah | |
| 3 | Cycle Life | ≥6000 Cycles (Charge: CC@0.2C to 43.8V, then CV till current to 0.05C; Rest: 30min; Discharge: 1C to 30.0V; Temperature: 20±5℃.) | |
| 4 | Discharge Cut-off Voltage | 30.0V | |
| 5 | Charge Cut-off Voltage | 43.8V | |
| 6 | Material | Prismatic Cell | |
| 7 | Recommend Charge Current | 20A~50A(0.2C~0.5C) | |
| 8 | Max. Continuous Charge Current | 100A | |
| 9 | Max. Continuous Discharge Current | 100A(Peak: 250A, @<10s) | |
| 10 | Operation Temperature | Charge: 0~55℃ | |
| Discharge: -20~65℃ | |||
| Storage: 0~45℃ | |||
| 11 | Self-discharge Rate | <3%/month | |
| 12 | Outer Case | ABS Plastic Case | |
| 13 | Weight | Approx.: 37Kg | |
| 14 | Dimension (L*W*H) | 525*270*220mm(±2mm) | |
| 15 | Bluetooth Function | Optional | |
| 16 | Display Screen | Optional | |
