All in One ESS Battery 48V 100Ah 5KW Modular

Build_in 5KW Inverter, 51.2V 100Ah Modular LiFePO4 Battery Design for Scalability
Send Inquiry
Description
Parameter
Products Description

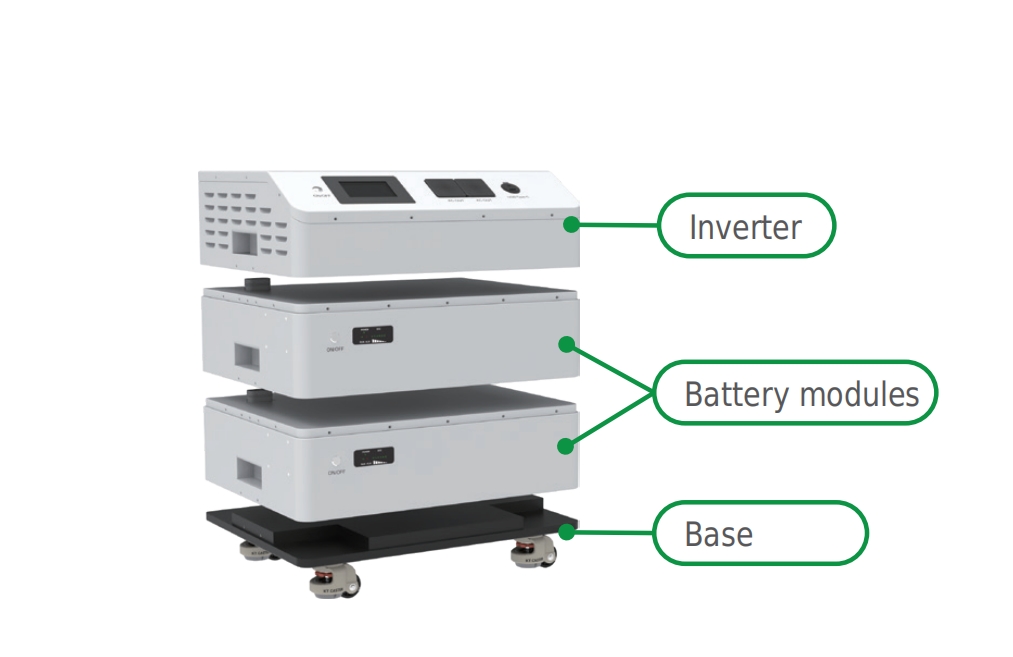

1.Modular Design for Scalability: The system's modular architecture allows for easy expansion, enabling you to stack additional battery modules (up to 6000+ cycles) as your energy needs grow. This flexibility ensures your energy storage solution stays future-proof.
2.Long-Lasting Lithium LifePO4 Batteries: Equipped with high-performance Lithium Iron Phosphate (LiFePO4) batteries, the CURENTA system offers exceptional durability, safety, and efficiency. These batteries have a longer lifespan compared to traditional lead-acid batteries, reducing maintenance costs and environmental impact.
3.Powerful 5KW Inverter: The built-in 5KW pure sine wave inverter ensures smooth, stable power output, compatible with most electronic devices, including sensitive appliances like laptops, TVs, and medical equipment. It seamlessly switches between battery power and solar input, maximizing energy utilization.
4.IP54 Waterproof Rating: Designed for outdoor and harsh environments, the CURENTA system boasts an IP54 waterproof rating, protecting it against dust and splashing water, ensuring reliable operation even in challenging conditions.
5.Easy Installation & Operation: With its intuitive user interface and straightforward installation process, the CURENTA system is a breeze to set up and manage. Monitor your energy usage, battery status, and system performance through the convenient display or mobile app (where applicable).
6.Solar-Ready & Grid-Independent: Ready to connect to your solar panels, the CURENTA system allows you to harness the power of the sun, reducing your reliance on fossil fuels and lowering your carbon footprint. It can also operate independently of the grid, providing peace of mind during power outages.
7.Portable & Versatile: Compact and lightweight, the CURENTA system is easy to transport, making it ideal for camping trips, tailgating parties, or as a backup power source during natural disasters.
8.Advanced Safety Features: Equipped with overcharge protection, short circuit protection, and temperature control, the CURENTA system ensures safe, worry-free operation.

Technical parameter
ItemParameters
Performance
ModelELT5-5LEUELT10-5LEUELT15-5LEU
System Demo
Number of Battery Modules123
Nominal Energy5.12KWh10.24KWh15.36KWh
Dimension (L*W*H)600*470*423mm600*470*572mm600*470*721mm
Weight79.5kg127.1kg174.7kg
ModelELT20-5LEUELT25-5LEUELT30-5LEU
System Demo
Number of Battery Modules456
Nominal Energy20.48KWh25.6KWh30.72KWh
Dimension (L*W*H)600*470*870mm600*470*1019mm600*470*1168mm
Weight222.3kg269.9kg317.5kg
AC Output
Rated Output Power5KW
Max.Peak Power10KVA
Rated Output Voltage230Vac, single-phase
Rated AC Frequency50Hz/60Hz
Output PortTotal 5 output ports:
AC socket*2, USB*1, Type-C*1, AC discharge cable*1
PV Input
Num. of MPPT Trackers1
Max.Input Current22A
Max.Voltage of Open Circuit500Vdc
PV Voltage Range120-500Vdc
MPPT Voltage Range120-450Vdc
DC Input
Charge Cut-off Voltage58.4V
Max. Con. Charge Current100A
Recommend Charge Current20A~50A (0.2~0.5C)
ChargerOptional
Mains/Generator Input
Input Voltage Range170~280Vac
Frequency Range50Hz/60Hz
Bypass Overload Current40A
Battery Module
Nominal Voltage51.2V
Rated Capacity100Ah
Nominal Energy5.12KWh
Battery TypeLithium Iron Phosphate (LiFePO4)
Cycle Life≧6000 cycles
[Standard discharge(0.2 C₅) after standard charge(0.2 C₅)]
Dimensions600*470*165mm(±5mm)
Weight47.6kg
General
Waterproof classIP54
Cooling methodAir cooling with InternaI fan (inverter) Natural cooling (battery modules)
Noise<60dB
Working Temperature0~55℃
DisplayLED indicator
CommuncationRS232/WIFI (Optional)
