Products Description

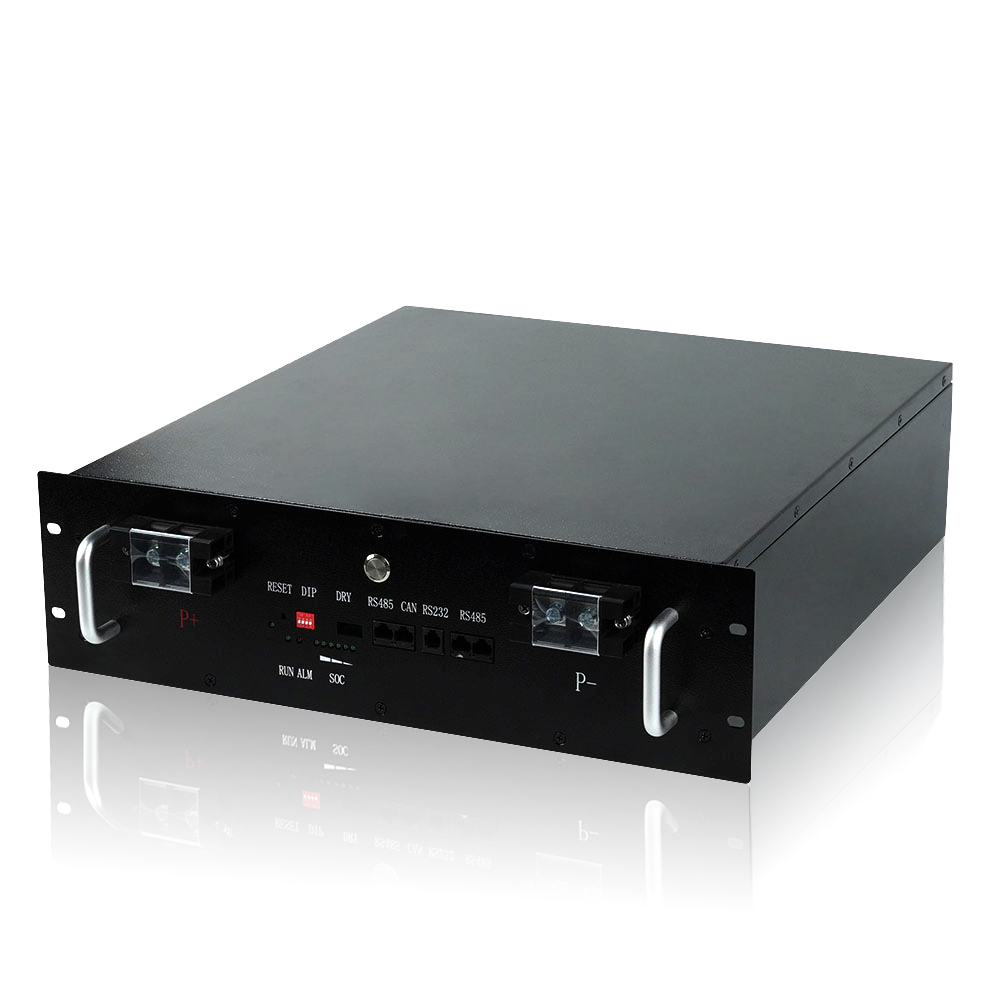

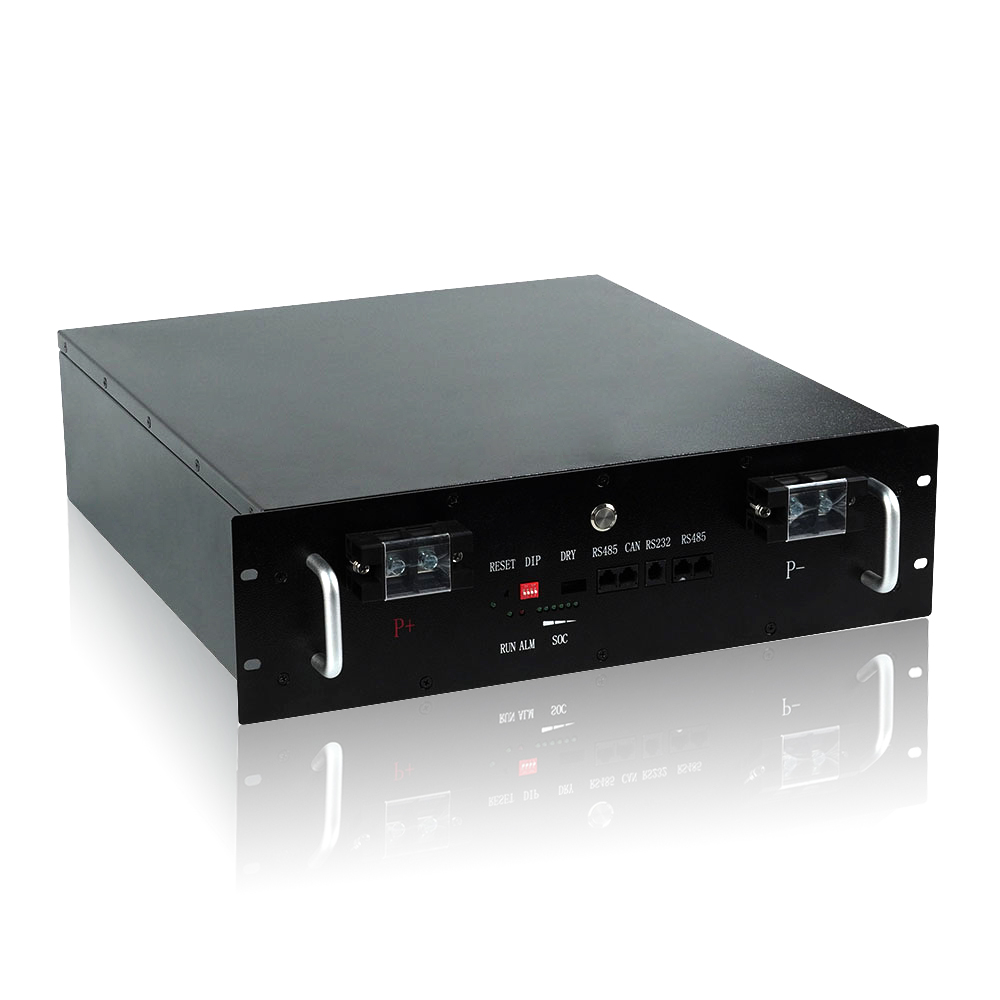

3U rack mounted design.
Support high current discharge, compatible with solar inverters and energy systems.
Intelligent BMS system
6000 cycles of battery are optional.
Flexible expansion and easy installation.
CAN/RS485/RS232 communication is optional.
Bluetooth and LCD Display is optional.
Excellent safety and reliability of lithium iron phosphate(LiFePO4) batteries.
Intelligent BMS can communicate with hybrid solar inverters of different brands.
Technical parameter
| 1 | Model | ELT512050R |
| 2 | Nominal Voltage | 51.2V |
| 3 | Rated Capacity | 50Ah |
| 4 | Cycle Life | ≥6000 Cycles |
| 5 | Discharge Cut-off Voltage | 40.0V |
| 6 | Charge Cut-off Voltage | 58.4V |
| 7 | Material | LiFePO4 |
| 8 | Recommend Charge Current | 10A~25A |
| 9 | Max. Continuous Charge Current | 50A |
| 10 | Max. Continuous Discharge Current | 50A(Peak: 60A, @<10s) |
| 11 | Operation Temperature | Charge: 0~55℃ |
| Discharge: -20~65℃ | ||
| Storage: 0~45℃ | ||
| 14 | Self-discharge Rate | <3%/month |
| 15 | Outer Case | Metal Case |
| 16 | Weight | Approx.: 25Kg |
| 17 | Dimension (L*W*H) | 482*400*133mm(±2mm) |
| 18 | Breaker | Optional |
| 19 | Display Screen | Optional |
